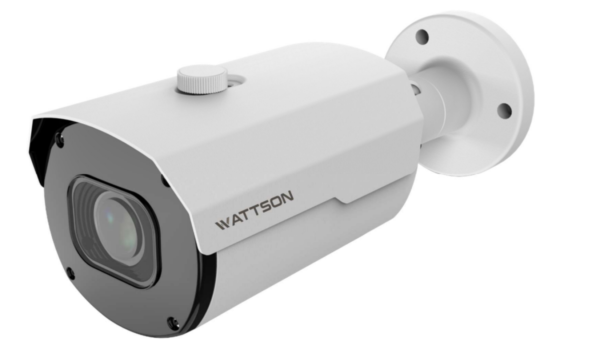

Description

1. High quality image with 5MP, 1/2.7″ CMOS sensor
This camera is equipped with a 1/2.7″ CMOS sensor and a 5MP resolution, delivering high-quality images. The sensor captures fine details and excellent clarity, with realistic colors and accurate reproduction of objects under surveillance.

2. 5MP (2592×1944) @25/20fps; 4MP (2592×1520) @25/20fps; 3MP (2304×1296) @25/20fps; 2MP (1920×1080) @30/25fps
The camera supports multiple image resolutions and frame rates (fps), allowing you to select the mode that best meets your surveillance needs:

• 5MP (2592×1944) at 25/20 fps: High resolution for highly detailed images with smooth frame rates.
• 4MP (2592×1520) at 25/20 fps: A good balance between image clarity and bandwidth consumption.
• 3MP (2304×1296) at 25/20 fps: Superior image quality to standard HD for effective surveillance.
• 2MP (1920×1080) at 30/25 fps: Full HD resolution, ideal for smooth and detailed captures while optimizing system resources.

3. H.265, H.264
The camera supports H.265 and H.264 video compression formats. These formats reduce the size of video files while maintaining optimal image quality. H.265 is particularly efficient in minimizing bandwidth usage and saving storage space.

4. Smart IR, up to 45m IR distance
The Smart IR function automatically adjusts the intensity of the infrared LEDs based on the surrounding lighting conditions. This allows the camera to capture clear images even in darkness, with an IR range of up to 45 meters, ensuring effective night surveillance.

5. Day/night functionality
With its day/night functionality, this camera adapts to changing ambient light levels. It can capture clear and detailed images in both bright daylight and low-light conditions, providing 24/7 surveillance without loss of quality, even in challenging lighting situations.

6. Digital Wide Dynamic Range (WDR)
Digital WDR helps capture details in high-contrast scenes, such as when some areas are very bright while others are very dark. This results in a more balanced and clearer image, with no overly dark or bright areas, which is essential for effective surveillance.

7. 3D DNR (Digital Noise Reduction)
3D Digital Noise Reduction (DNR) enhances image quality by removing noise interference, especially noticeable in low-light conditions. This makes the image sharper and more precise, reducing distortion and ensuring better readability.

8. Protection IP67
This camera is certified IP67, meaning it is protected against dust and temporary immersion in water (up to 1 meter deep for 30 minutes). This ensures weather resistance and allows the camera to operate in harsh outdoor conditions, whether it’s rain, snow, or extreme temperatures.

9. DC12V or PoE (IEEE 802.3af) power supply
The camera can be powered in two ways: through a standard DC12V adapter or via Power over Ethernet (PoE) according to the IEEE 802.3af standard. PoE simplifies installation by allowing a single Ethernet cable to deliver both power and data transmission, which can reduce cabling and installation costs.

PDF DOCUMENTATION : WIP540VMD
